- 818-C磁保持繼電器
- 1.僅需脈沖激勵，可單、雙線圈，可手動開關控制.
2.負載能力強，可切換60A、80A/250VAC.
3.功耗低，體積小.
4.可根據客戶要求焊接附件.
|
產品詳細
觸點參數Contact parameters
|
觸點型式Contact type
|
一組常閉A group of normally closed
|
|
觸點材料Contact material
|
銀合金Ag alloy
|
|
接觸電阻Contact resistance
|
2mΩ Max(1A 24VDC)
|
|
觸點負載Contact load
|
60A 250VAC
|
|
最大切換電流Max switching current
|
60A
|
|
最大切換電壓Max switching voltage
|
250VAC
|
|
最大切換功率Max switching power
|
15000VA
|
|
最大短路電流Max switching voltage
|
1800A 10ms
|

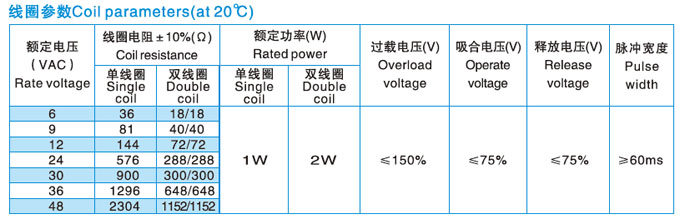

性能參數 Performance parameters
|
吸合時間Response time
|
20ms Max
|
|
釋放時間Release time
|
20ms Max
|
|
絕緣電阻lnsulation resistance
|
100MΩ Min.(DC500V)
|
|
介質耐壓Dielectric withstanding voltage
|
觸點與觸點間between contacts:AC 1500VAC,50/60Hz 1Min
|
|
觸點與線圈間between contacts＆coil:AC 4000VAC,50/60Hz 1min
|
|
抗振動Vibration resistance
|
耐久Durable
|
10～55Hz,雙振幅1.5mm
|
|
誤動作False action
|
10～55Hz,雙振幅1.5mm
|
|
抗沖擊lmpact resistance
|
耐久Durable
|
10G Min.
|
|
誤動作False action
|
50G Min.
|
|
壽命Life times
|
機械壽命Mechanical life
|
100,000cycles
|
|
電氣壽命Electrical life
|
10,000cycles
|
|
環境溫度Ambient temperature
|
-30℃～+70℃(不冷凝)No condensation
|
|
重量Weight
|
不帶附件約33g Without attachment to about 33g
|

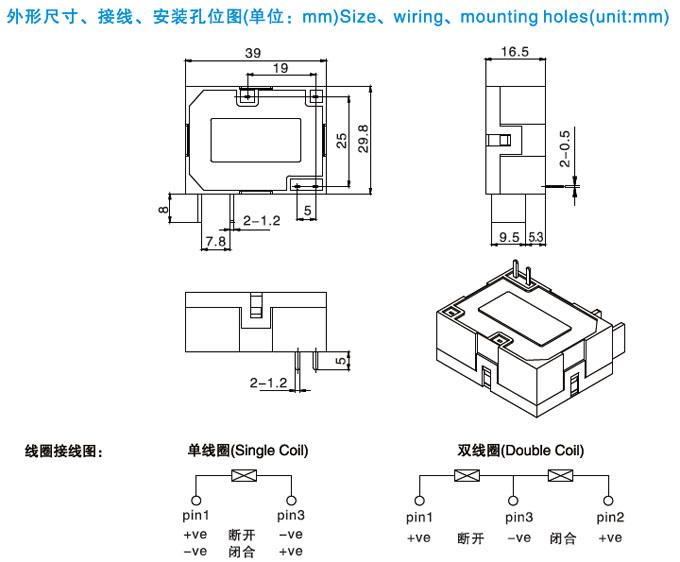

典型用途Typical uses
●智能電度表 ●電力復合開關
●lntelligent electric meter ●Composite power switch
注意事項Matters needing attention
1、 磁保持繼電器出廠狀態為觸點閉合狀態（復位狀態），但因運輸或繼電器安裝時受到?jīng)_擊等因素的影響，可能會改變狀態，因此在使用前（電源接入時）有必要采取措施重新使其復位。
Magnetic latching relay factory condition for contact closure state,but because carry or installed when subjected to impact,may change state,therefore before use to make its reset.
2、 為了確保磁保持繼電器可靠動作，施加到線圈上的激勵電壓須達到額定值，且脈沖寬度設置須達到動作時間的3倍以上。
Ln order to ensure the reliability of relay coil voltage,must reaeh value,the pulse width must be 3 times more time.
3、 不帶軟銅編織線的磁保持繼電器，負載引出腳不能錫焊，不能隨意扳動，且不能同時剛性固定兩個引出腳。
Not with braided line relay,the load pin can not solder,not arbitrarily wrenched,two pins and rigid fixation
4、 磁保持繼電器是有極性區分的，如果用戶需要的極性與本資料不符，應在訂貨時特別提出。
Magnetic latching relay is polar differentiation,and if the user needs to polarity and the data is inconsistent,should be in order when the special offers.
5、 繼電器入廠檢查及使用中應輕拿輕放，防止跌落影響參數。入廠作破壞性檢查的產品要與正常產品嚴格區分標識，不得裝機使用。
Relay incoming inspection should be light-light,do the destructive test of products must be consistent with normal goods isolated and labeled,shall not be used.
|
